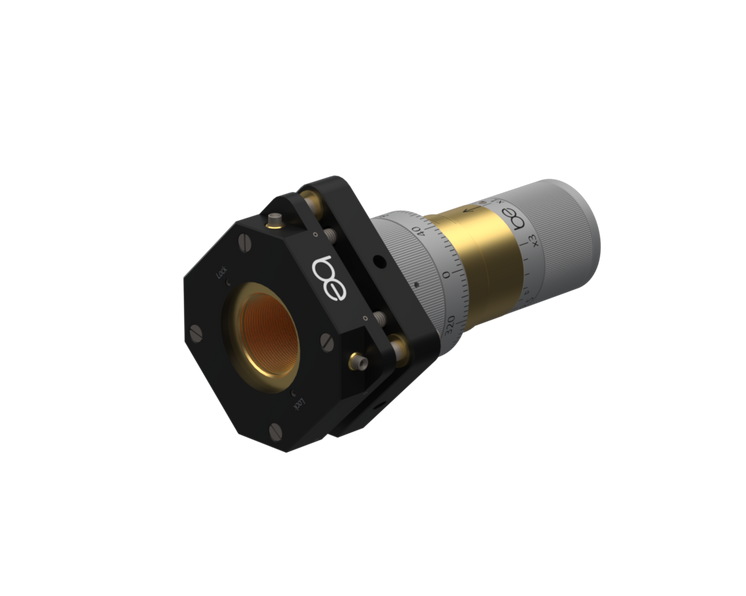

4-axis Beam Expander Alignment Stage

Features:

  • Gimbal mount

  • Travel range:

  • Tilt/Pitch/Θy    ±4°

  • Tip/Yaw/Θx    ±4°

  • Y-axis        ±2 mm

  • X-axis        ±2 mm
    Sensitivity:

  • Tilt/Tip        7 arcsec

  • X/Y           1 µm

  • Adjustment micro-screws:

  • Tilt/Tip        3 mm HEX

  • X/Y           2 mm HEX

  • Mounting thread: M27x1

  • Max Load    0.8 kg

  • Dimensions (WxHxL): 66x66x42 mm

  • Weight: 315 g

Standard items

Description

Beam Expander Alignment Stage is robust industrial solution for mounting larger & heavier beam expanders - High Power, USP and Motorized series. It allows you to intuitively align beam expanders to the laser beam. To optimize your time spent on aligning our beam expanders we suggest using our alignment manuals.

The stage employs locking mechanism for each axis for long term stability. Adjustment is realized via micro-screws containing sapphire pads, which ensures long lasting and smooth operation.
